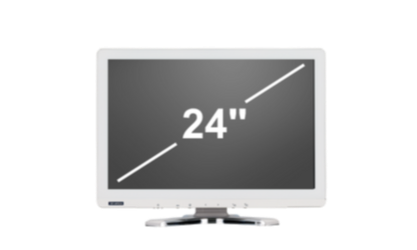

24″
PAX-324
FHD
High Brightness
- True-flat surgical monitor
- SDI up to FHD @ 60Hz
- AVAS optional
More specs
- AR filter coating
- Resolution support up to 1920 × 1080 @ 60Hz
Surgical Monitors from 24″ to 55″ for Modern OR Visualization
From 24″ compact displays to 55″ 4K surgical monitors, Advantech PAX-3 Series helps hospitals, integrators, and Medical Device Manufacturers build OR visualization setups that are clear, reliable, easy to clean, and ready for multi-source video workflows.
With 2D and 3D options, flexible connectivity, high-brightness imaging, and medical-grade design, PAX-3 medical monitors support endoscopy, laparoscopy, C-arm imaging, hybrid ORs, and integrated operating rooms.
OR Visualization Has to Work Under Pressure
Surgical monitors need to perform in real OR conditions: bright lights, multiple video feeds, strict cleaning routines, limited installation space, and long operating schedules. PAX-3 helps teams choose the right medical display for each setup.
Bright, Glare-Heavy Lighting
OR lighting and reflective surfaces can wash out fine detail on standard displays.
Multiple Live Video Sources
Endoscopy, C-arm, navigation, and vitals often need to be visible at the same time.
Strict Cleaning Routines
Displays must support frequent wipe-downs with hospital-approved antibacterial agents without compromising the front surface, seals, or touch performance.
Long, Back-to-Back Schedules
Displays run for extended hours across procedures with little room for downtime.
Compare PAX-3 Surgical Monitors
Four sizes, one consistent design language. See specs and connectivity, then download the datasheet for the details.
24″
27″
PAX-327
FHD + UHD
SDI
- True-flat surgical monitor
- SDI up to 4K UHD @ 60Hz
- AVAS optional
More specs
- AR filter coating
- 4K SDI: 3G × 4 or 12G × 1
- Resolution support up to 3840 × 2160 @ 60Hz
32″
PAX-332
FHD + UHD
SDI
- True-flat surgical monitor
- SDI up to 4K UHD @ 60Hz
- AVAS optional
More specs
- Medical-grade certified panel
- 4K SDI: 3G × 4 or 12G × 1
- Resolution support up to 3840 × 2160 @ 60Hz
New
32″
32″
PAX-332 3D
4K UHD
3D
SDI
- Polariser 3D technology
- Supports 2D and 3D mode
- SDI up to 4K UHD @ 60Hz
More specs
- Flicker-free polariser technology
- 4K SDI: 3G × 4
- Resolution support up to 3840 × 2160 @ 60Hz
New Gen
55″
55″
PAX-355S
4K UHD
High Brightness
- True-flat medical monitor
- Multi-picture display modes
- iVideo OR streaming optional
More specs
- Multiple board card configuration
- Display modes: Normal, PiP, PBP, 4P
Still comparing models?
Get help choosing the right PAX monitor for your OR setup, including display size, 4K/3D support, SDI configuration, and integration options.
Why Choose PAX-3 Surgical Monitors?
Five reasons OR teams, integrators, and Medical Device Manufacturers choose PAX-3. Select a topic to see it in the OR.
Clearer Image Viewing When Details Matter
High-resolution imaging, high brightness, DICOM Part 14 GSDF alignment, and gamma optimization, depending on the selected model.
Fewer misreads on fine detail, even under OR pressure.
Multi-Source Viewing for Integrated Workflows
Single view, picture-by-picture, picture-in-picture, and quad-view layouts on selected models.
Less input-switching, better coordination during complex cases.
Flexible Connectivity for Surgical Systems
Flexible input options, including SDI, HDMI, DisplayPort, and more, are available based on the selected model configuration.
Easier integration with endoscopy, C-arm, and OR platforms.
OR-Ready Design for Cleaning and Daily Use
True-flat front glass and IP-rated protection support frequent cleaning and daily use.
Faster wipe-down between cases, better hygiene routines.
Support for Hospitals and OEM Projects
Selection guidance, lifecycle planning, and customization options for both direct and OEM projects.
Projects planned around real certification and branding needs.
What's New in the PAX-3 Line
Two recent additions built for the same goal: clearer, more confident visualization in the OR.
New-Generation 55″ Surgical Visualization
PAX-355S combines large-format 4K viewing with a lightweight modular design, making installation, servicing, and OR integration easier for hospitals, integrators, and OEM projects.
- 32 kg design (without optical bonding) for easier mounting and maintenance
- Optional optical bonding for clearer viewing
- Optional embedded streaming solution
- Flexible board options for project needs

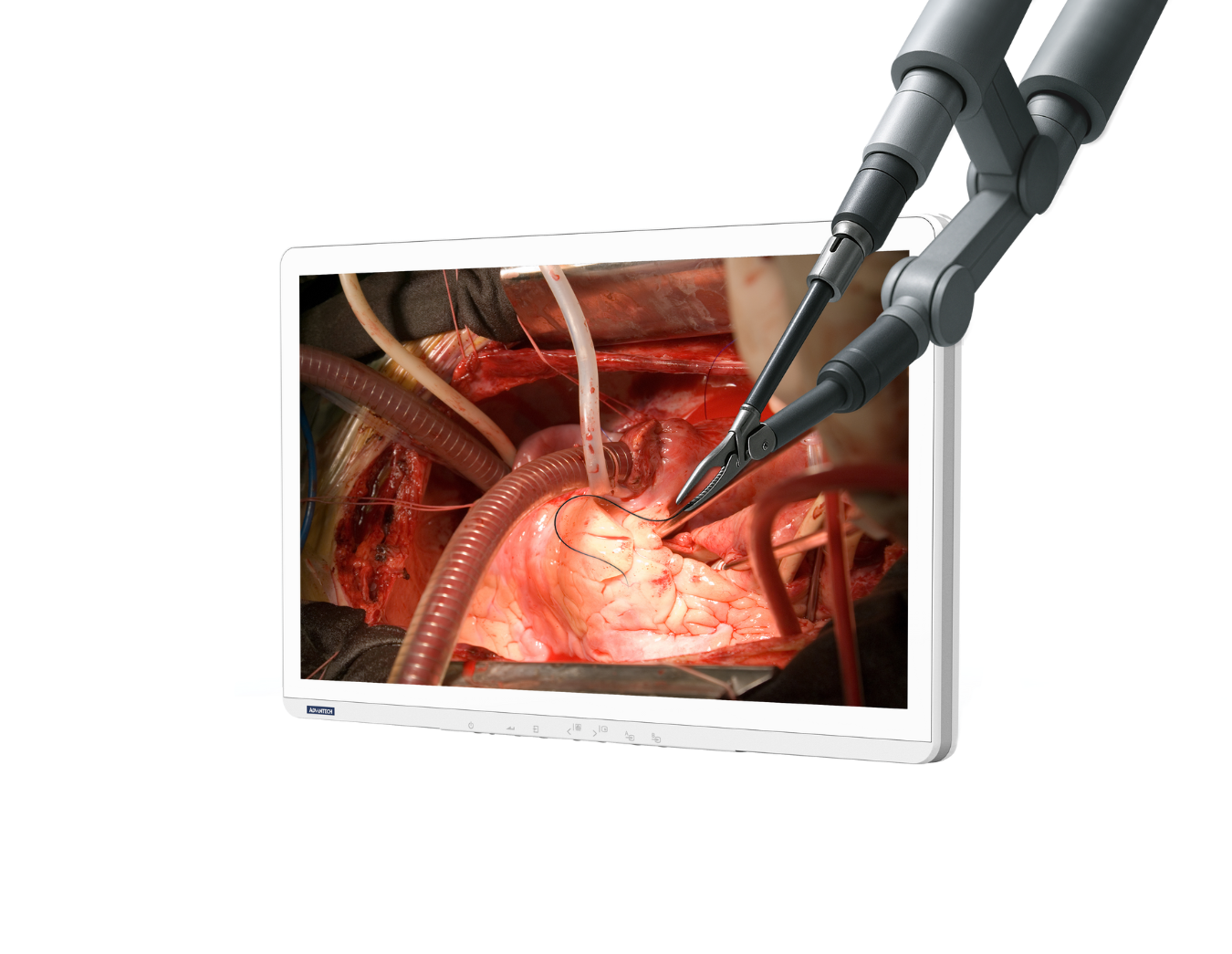

3D Surgical Visualization for Depth-Critical Procedures
PAX-332 3D provides stereoscopic 3D imaging with 4K resolution, high brightness, low crosstalk, and 2D/3D switching — built for minimally invasive, endoscopic, laparoscopic, and robotic-assisted workflows.
- More natural depth perception
- Better hand-eye coordination
- Comfortable during long 3D viewing
- Flexible use across 2D and 3D procedures
Crystal-Clear, Multi-View, Glare-Free Visualization
Consistent contrast, accurate color, and fewer reflections — so surgical teams see exactly what matters, from any angle, on any source.
4K
UHD resolution on selected models
DICOM
Part 14 GSDF compliant
Up to 4×
simultaneous video streams
AR & AG
anti-reflection and anti-glare front glass

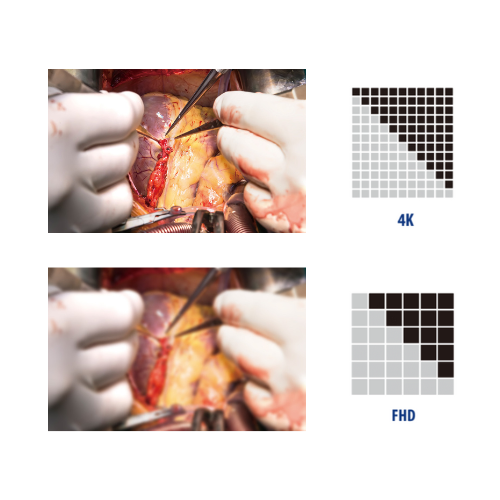

Up to 4K, DICOM & Gamma 2.2 Compliant
Consistent high contrast, accurate color, and DICOM Part 14 compliance for high-stakes imaging in guided surgery and hybrid ORs, including C-arm imaging systems.
Anti-Glare & Anti-Reflection Glass
Fewer reflections improve visible greyscale resolution on DICOM images like X-rays, and hold contrast even under bright OR lighting.

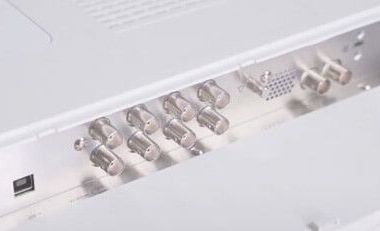

From Single to Up to Quad View (3G x 4)
Display up to four video streams simultaneously with PbP and PiP layout modes for customized, real-time multi-input workflows.
Proven in Complex Medical Imaging Projects
See how Advantech surgical displays and medical-grade platforms support real-world radiology, hybrid OR, and medical imaging projects, from custom integration to reliable visualization in demanding clinical environments.
Integrated Control for Radiology Systems
Advantech supported Eurocolumbus with customized monitor and touchscreen control solutions for Linux-based radiology systems, including tailored system images, wireless functionality, and multi-display integration.
Read the case study
Hybrid OR Display for X-Ray Workflows
PAX-324 supported radiotherapy imaging with DICOM calibration, high brightness, integrated touch, EMI-resistant design, and flexible I/O including SDI for complex Hybrid OR installations.
Read the case studyBuilt for Different Healthcare Technology Partners
For Hospitals
Upgrade ORs, hybrid rooms, C-arm rooms, and endoscopy suites with displays in multiple sizes and configurations.
For System Integrators
Connect monitors with surgical cameras, endoscopy systems, video routers, and OR integration platforms.
For Medical Device Manufacturers
Discuss OEM branding, configuration support, lifecycle planning, and integration into your medical systems.
Simplify Video Integration in the Modern OR
Modern ORs now rely on more video sources, displays, imaging systems, recording tools, and remote collaboration workflows. This guide shows how to plan a more reliable, flexible, and future-ready video integration setup for connected surgical environments.
What’s inside:
- Why OR video systems are becoming more complex
- Key requirements for future-ready video infrastructure
- How to support multi-source visualization and connected workflows
Frequently Asked Questions
What does IP65 front protection mean for medical monitors?
IP65 front protection means the monitor's front surface is protected against dust and water jets. In the OR, this supports easier wipe-down because the front side is the area most exposed to touch, splashes, and frequent cleaning.
Is the back of the monitor also IP65 protected?
IP protection may differ between the front, rear, top, and other parts of the monitor. The front side often has higher protection because it's the main cleaning and interaction surface. For exact front, rear, and top-side IP ratings, check the selected model datasheet or contact our team.
What is the warranty for PAX-3 surgical monitors?
PAX-3 surgical monitors are offered with a 3-year warranty. For project-based deployments, extended support, spare parts planning, or lifecycle requirements, please contact our team.
Are PAX-3 surgical monitors MDR compliant?
PAX-3 surgical monitors are designed for medical environments and support medical-grade requirements. MDR-related documentation may depend on the selected model, configuration, intended use, and integration scenario. For EU medical projects, contact us so we can confirm the correct documentation for your application.
Can the monitors be branded with our company logo?
Yes, branding may be possible for Medical Device Manufacturer and OEM projects. Availability depends on the requested customization, project scope, and minimum order quantity. Contact us to discuss branding options and project feasibility.
Can PAX-3 monitors withstand 24/7 continuous operation?
PAX-3 surgical monitors are designed for demanding medical environments and long operating schedules.
What cleaning agents are safe to use on medical-grade touchscreens?
Cleaning instructions vary by model and touchscreen configuration. Use a soft, lint-free, non-abrasive cloth and follow the product manual or hospital-approved cleaning protocol. For a validated list of approved cleaning agents, contact our team with the exact monitor model and configuration.
Do you offer customization for Medical Device Manufacturers (OEM)?
Yes. Advantech supports OEM and Medical Device Manufacturer projects with configuration guidance, branding options, lifecycle planning, and integration support. Customization depends on technical requirements, certification needs, order volume, and project timeline.
